Model: MT206E
Body Material: Mild steel
Pressure element Material: SS316L
Working Pressure: 0-250bar
Testing Pressure: 0-400bar
Mechanical Accuracy:1.6% F.S.@25℃
Certification：ECE-R110/ISO 15500

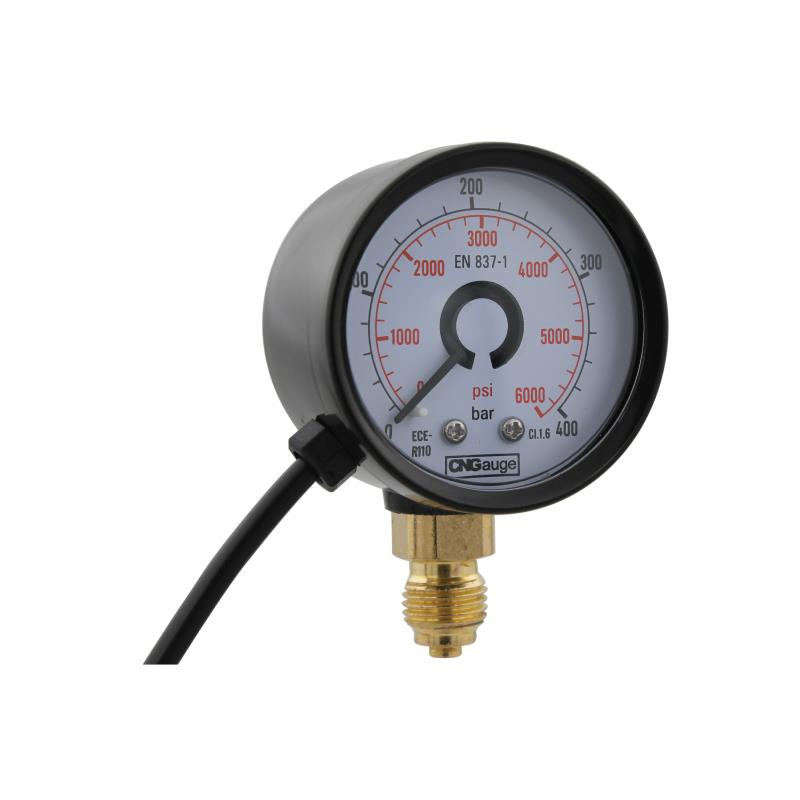

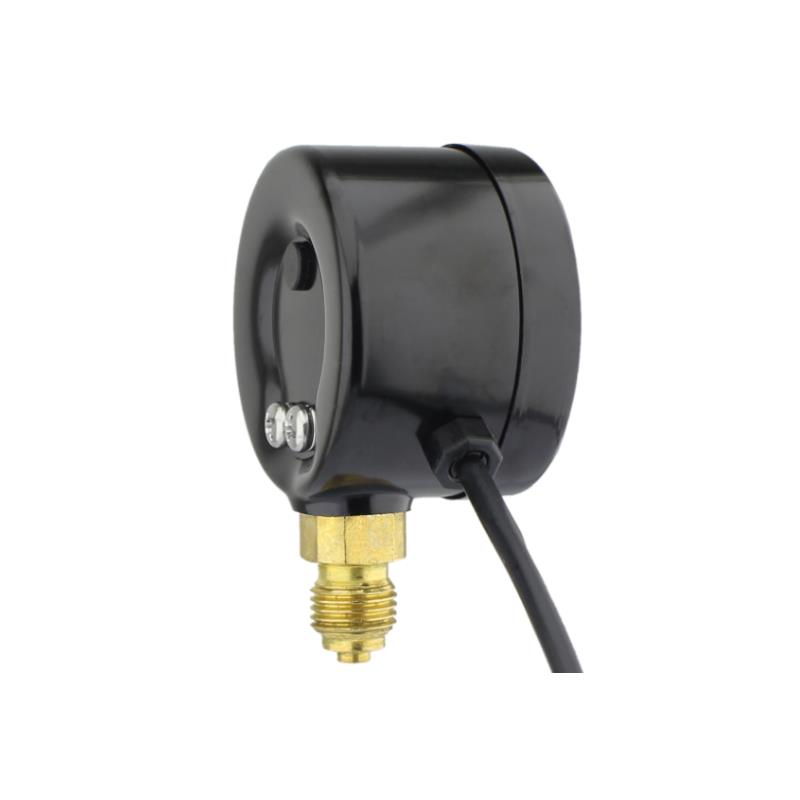

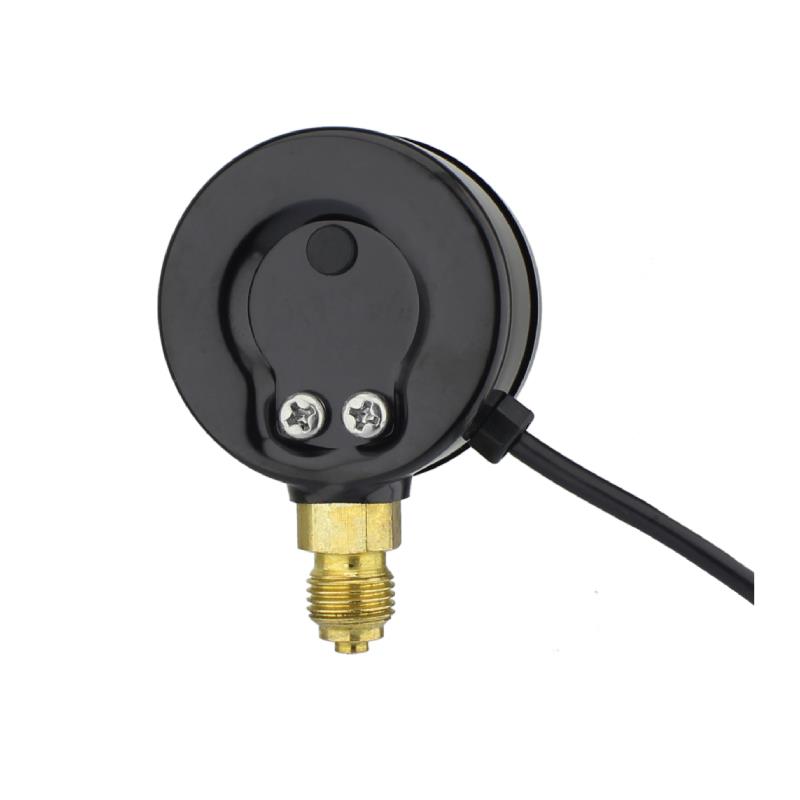

MT206E is the first optical manometer designed completely as per the conditions of NGV, the combined type internal, SMT type optical element increase the accuracy, durability and stability a lot, durability can be upto 5~8 years, arrived at the same level of pressure sensor! During warranty, the failure rate is only 0.2%, which is much lower than similar products from.
Specification | Body Material | Mild steel |
| Socket Material | Brass | |
| Pressure element Material | SS316L | |
| Window Material | Polycarbonate | |
| Socket | M12*1.5, 1/4"BSP...... | |
| Working Pressure | 0-250bar | |
| Working Temp | -40~120℃ | |
| Testing Pressure | 0-400bar | |
| Leakage Testing | 350bar air pressure | |
| Burst Testing | 520bar liquid pressure | |
| Burst Pressure | >1000bar | |
| Mechanical Accuracy | 1.6% F.S.@25℃ | |
| Electronic Accuracy | ±10 bar | |
| Durability | 150,000 cycles | |
| Protection | IP66 | |
| Warranty | 2 years or 100K Km | |
| Certifications | ECE-R110 / ISO15500 |
